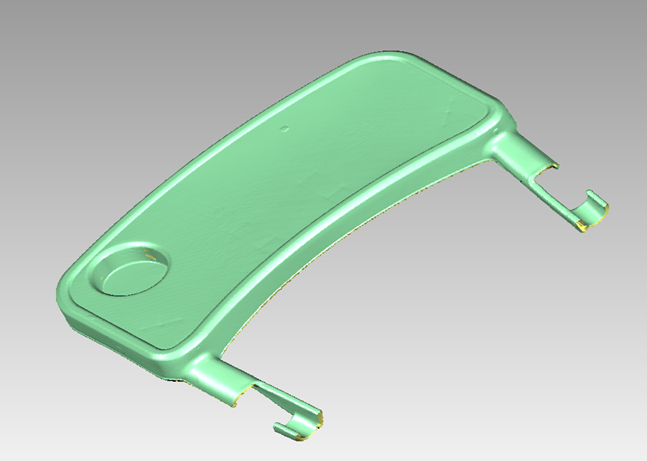

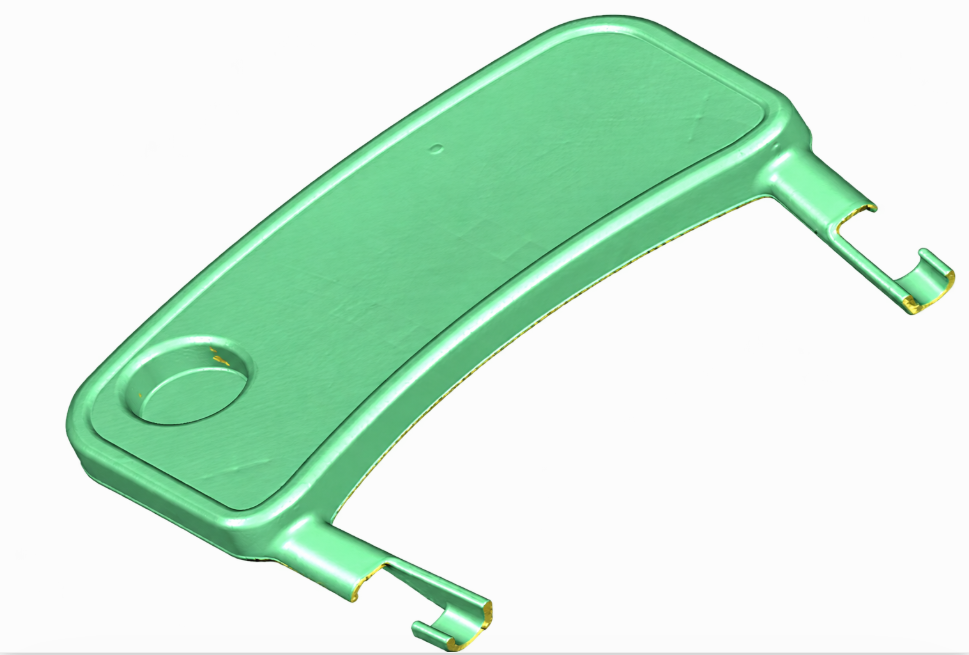

Point cloud data
vThe scanned data is edited and assembled in preparation for 3D design.

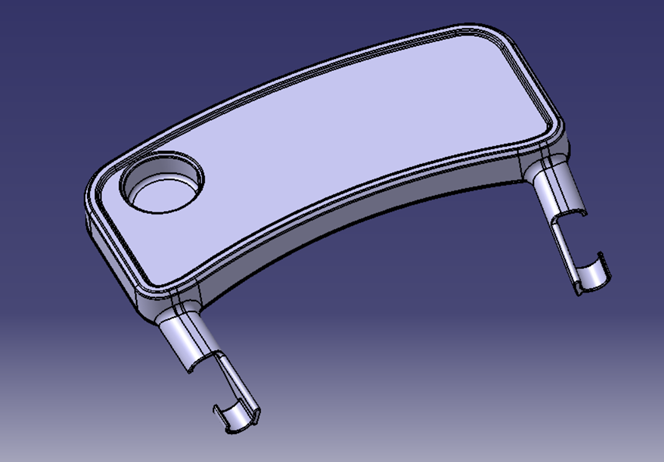

Step 2: Cad Design
The point cloud data is converted into a CAD model using surface and solid modeling tools to create a model that accurately matches the point cloud data.

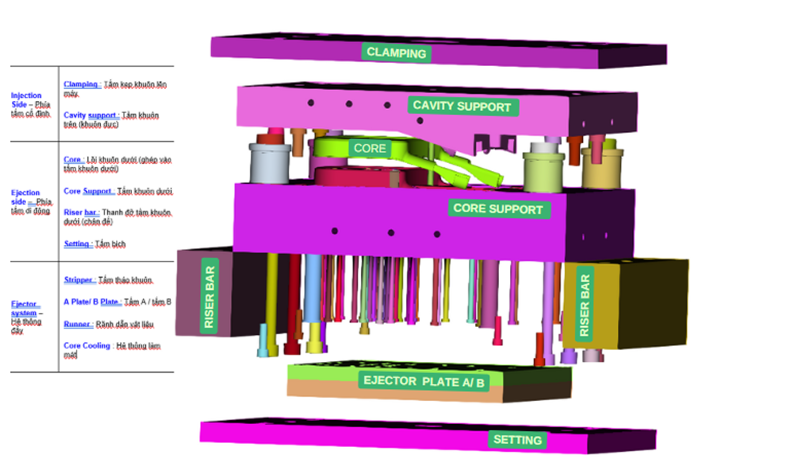

Step 3: CAD Design for Mold
The CAD model of the mold is created based on the CAD design of the part derived from the point cloud data, with specific components assigned to each functional area.
Step 4: Analysis Results – Filling
The analysis results show the required fill time, as well as the air traps, temperature, and flow pressure in each area…
Step 6: Finalize the Design

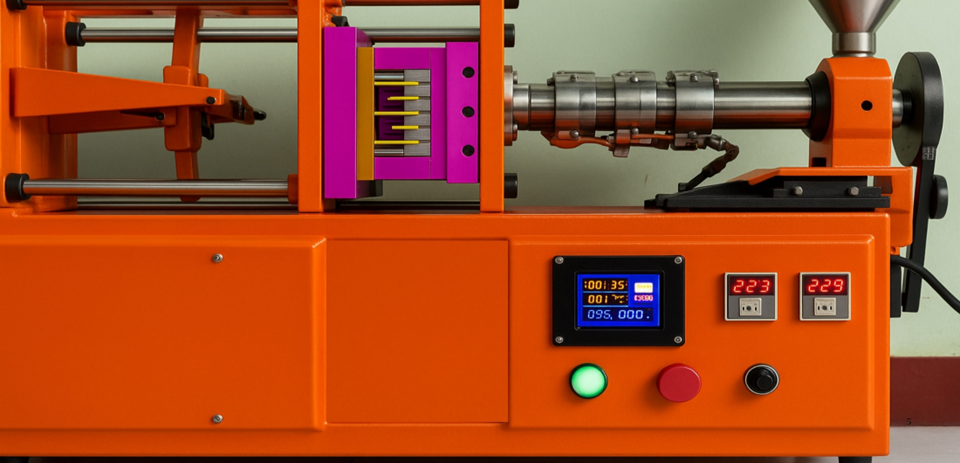

The final rendering allows visualization of the mold design in a real environment to evaluate aesthetics, suitability, and finishing for the injection machine before production.
